Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Huawei
  • Model Number: MA5608T
  • Backplane bus switching capacity: 720 Gbit/s
  • Dimensions: 535mm*244.5mm*88.1mm
  • Weight (empty chassis): 3.55kg
  • Power supply mode: DC or AC
  • DC Rated voltage: -48 V / -60 V
  • AC Rated voltage: 110 V / 220 V
  • DC Working voltage range: -38.4 V to -72 V
  • AC Working voltage range: 100 V to 240 V
  • DC Maximum input current: 10A
  • AC Maximum input current: 6A

Packaging & Delivery

Packaging Details Standard packing or according to customer's requirements.

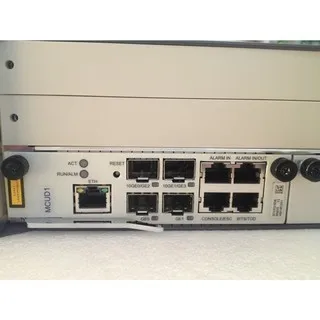

Huawei MA5608T GPON OLT  IP DSLAM

Introduction

The MA5600T functioning as an integrated optical-copper access equipment, provides the integrated broadband and narrowband access and FTTx optical access services that feature high rate, high bandwidth, and high quality. It can function as an OLT, MSAN, or IP DSLAM. The MA5600T is a large-capacity device, the MA5603T is a medium-capacity device and the MA5608T is a small-capacity device.



  • Supports the 10G GPON and GPON access service. All the three can function as an optical line terminal (OLT) in the GPON system, working with the optical network terminal (ONT) or other optical network units (ONUs).
  • Supports the point-to-point (P2P) FE/GE optical access. The P2P board is mainly used for cascading, and it can also provide users with P2P FTTH access by cooperating with ONTs.
  • Provides the voice service solution based on the Session Initiation Protocol (SIP) and H.248, supports the POTS port to implement the voice service, fax service, narrowband modem service, and various supplementary services.
  • Provides the E1/N*64k private line service through the TDM SHDSL board. And H802EDTB board supports the TDM SHDSL feature.
  • Supports broadband access services such as ADSL2+, VDSL2, and SHDSL, enhancing the xDSL function

Figure 1 Typical network of the MA5600T/MA5603T/MA5608T(OLT)



CPE: customer premise equipment

MDU: multi-dwelling unit

ONT: optical network terminal

P2P: point to point

VoIP: voice over IP

SIP: Session Initiation Protocol

SHLR: smart home location register

NGN: next generation network

IMS: IP multimedia core network subsystem

CSCF: call session control function

HSS: home subscriber server

MGCF: media gateway control function

MRP: media resource processor

MRC: media relay control unit

Optical Access

The MA5600T/MA5603T/MA5608T supports 10G GPON access, GPON access and P2P access, which effectively meets requirements of various FTTx access applications.
  • Supports a split ratio of 1:128.
  • Support small form-factor pluggable (SFP) optical module of Class B+ or Class C+ and XFP optical module, which can be used in different scenarios.
  • High-density 48 single-fiber bi-directional or 24 two-fiber bi-directional GE/FE P2P optical access is supported.
  • Supports the high-performance and large-capacity control board SCUH. In active/standby mode, SCUH supports 20 Gbit/s switching bandwidth for each slot. In load sharing mode, SCUH supports 40 Gbit/s switching bandwidth for each slot. And provides 960G switching capacity (doubles performance capacity), improving access user bandwidth.
Table 1 System performance parameters of the MA5600T/MA5603T/MA5608T

Parameter

Specification

Backplane bus switching capacity

MA5600T: 3.2 Tbit/s(H801MABC), (H802MABC)

MA5603T: 1.5 Tbit/s(H801MABO), 2 Tbit/s(H802MABO)

MA5608T: 720 Gbit/s

System L2 packet forwarding rate

SCUB: 72 Mpps

SCUN: 726 Mpps(Active/Standby mode), 1452 Mpps(Load-sharing mode)

SCUF: 190 Mpps

SCUH: 1428 Mpps(Active/Standby mode), 2856 Mpps(Load-sharing mode)

MCUD/MCUD1: 190Mpps(Active/Standby mode), 380Mpps(Load-sharing mode)

Control board switching capacity

SCUB: 48 Gbit/s

SCUN: 480 Gbit/s(Active/Standby mode), 960Gbit/s(Load-sharing mode)

SCUF: 128 Gbit/s

SCUH: 960 Gbit/s(Active/Standby mode), 1920Gbit/s(Load-sharing mode)

MCUD/MCUD1: 128Gbit/s(Active/Standby mode),256Gbit/s(Load-sharing mode)

Switching/Forwarding delay

Short forwarding delay: The 100 Mbit/s Ethernet port sends the 64-byte Ethernet packets at a delay shorter than 20 μs.

BER in full load

BER of port when transmitting data in full load < 10 e-7

  Table2Configuration parameters of the MA5600T/MA5603T/MA5608T

Parameter

Data Configuration (MA5600T ETSI subrack)

Data Configuration (MA5600T IEC subrack)

Data Configuration (MA5603T)

Data Configuration (MA5608T)

Maintenance port

  • Number of 10 Mbit/s/100 Mbit/s maintenance Ethernet ports: 1
  • Number of serial ports for local/remote maintenance: 1
  • Number of 10 Mbit/s/100 Mbit/s maintenance Ethernet ports: 1
  • Number of serial ports for local/remote maintenance: 1
  • Number of 10 Mbit/s/100 Mbit/s maintenance Ethernet ports: 1
  • Number of serial ports for local/remote maintenance: 1
  • Number of 10 Mbit/s/100 Mbit/s maintenance Ethernet ports: 1
  • Number of serial ports for local/remote maintenance: 1

Monitoring port

Number of environment monitoring serial ports: 1

Number of environment monitoring serial ports: 1

Number of environment monitoring serial ports: 1

Number of environment monitoring serial ports: 1

Maximum number of ADSL2+ ports in a subrack

1024

896

384

128

Maximum number of VDSL2 ports in a subrack

1024

896

384

128

Maximum number of EFM SHDSL ports in a subrack

512

448

192

64

NOTE:

The MA5608T only supports the EFM SHDSL ports.

Maximum number of TDM SHDSL ports in a subrack

256

224

96

32

Maximum number of POTS ports in a subrack

1024

896

384

128

Maximum number of ISDN BRA ports in a subrack

512

448

192

64

Maximum number of ISDN PRA ports in a subrack

64

56

64

64

Maximum number of GPON ports in a subrack

256

96

32

Maximum number of 10G GPON ports in a subrack

128

48

16

Maximum number of P2P FE ports in a subrack

768

288

96

Maximum number of P2P GE ports in a subrack

768

288

96

Maximum number of upstream ports (GE ports in the GIU slot) in a subrack

8

8

8

-

Maximum number of upstream ports (10GE ports in the GIU slot) in a subrack

4

4

4

-

Maximum number of upstream ports (PON ports in the GIU slot) in a subrack

2 (work in the active/standby mode)

2 (work in the active/standby mode)

2

-

Maximum number of extended subrack in a subrack

32

32

32

-

  The maximum number of GE upstream ports in a subrack or the maximum number of 10GE upstream ports in a subrack refers to the maximum number of upstream ports supported by the upstream board configured in the GIU slot.

  • If the services slots house the SPUA boards, a single slot can support eight GE upstream ports and two 10GE upstream ports.
  • If the services slots house the SPUC boards, a single slot can support 40 GE upstream ports and four 10GE upstream ports.
  • If the services slots house the SPUF boards, a single slot can support three interface working modes: 8 * 10GE, 8 * GE, 4 * 10GE + 4 * GE.
  • If the service slots house the ETHB boards, a single slot can support eight GE upstream ports.
