Quick Details

  • Place of Origin: China (Mainland)
  • Brand Name: Huawei
  • Model Number: MA5603T
  • MA5603T subrack: 442 mm * 283.2 mm * 263.9 mm.
  • Control board: SCUB/SCUN/SCUK/SCUH
  • Upstream board: GICF/GICK/GICD/GSCA
  • SPU board: SPUA/SPUF/SPU
  • Ethernet service access board: ETHA/ETHB
  • P2P interface board: OPGD/OPGE
  • Number of ADSL2+ ports in a subrack: Maximum: 384
  • Number of VDSL2 ports in a subrack: Maximum: 384
  • Number of POTS ports in a subrack: Maximum: 384
  • Number of10G GPON ports in a subrack: Maximum:48

Packaging & Delivery

Packaging Details Original Huawei Carton Package
Delivery Time Within 7 days after the receipt of the payment

Huawei SmartAX MA5603T EPON OLT With a Maximum of 3072 EPON Users

1.The MA5603T is an integrated fiber-copper access device, and can serve as a DSLAM, OLT,

or MDU.

2.The MA5603T, if serving as an OLT, supports GPON and 10G GPON access modes. It

can be installed at a residential district or a street side, which reduces the usage of ODN
backbone optical cables, lowers the ODN deployment cost and difficulty, and minimizes
the CO equipment room space.
3.The MA5603T, if serving as a DSLAM, supports ADSL2+, VDSL2, SHDSL, and POTS
access modes.
4.The MA5603T, if serving as an MDU, supports ADSL2+, VDSL2, SHDSL, and POTS
access modes and transmit packets upstream to the OLT through a GPON/10G GPON/GE/
10 GE port.

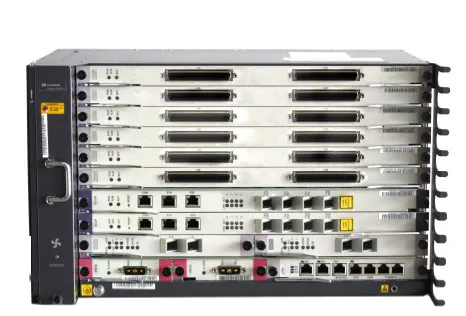

Appearance

Deployment Scenarios



 Characterstics

Large-capacity platform with Access and Aggregation Integration

  • Developed based on the iMAP hardware platform and the IAS software platform of Huawei, the MA5600T series product takes on the advanced architecture and design.
  • The switching capacity of the backplane is up to 3.2 Tbit/s, and the bidirectional switching capacity of the control board is up to 480 Gbit/s.
  • High density GE/10GE interfaces for cascading, up to 36*10GE or 384*GE interfaces, no need for additional investment of aggregation switches.
  • Each GPFD board supports 16 GPON ports, based on the 1:128 split ratio, the single subrack supports up to 16K ONTs.
  • Sharing the development platform with Huawei's broadband access devices, the MA5600T series product support the Layer 2 and Layer 3 features of the broadband access devices to provide user-oriented and future-oriented functions.
  • GE/GPON/NGPON coexisting on the same platform.
  • Aggregation switches.

Any Access

  • Large capacity IPTV service provision, 8K multicast users and 4K multicast channels and 2k concurrent multicast channels.
  • HQoS support 3-level QoS (Different ISP/ service/user) guarantees OLT wholesale.
  • Traditional E1 service access, Native TDM or CESoP for traditional E1 service of enterprise and mobile base station access.
  • E-LAN function for local traffic inter-connection, meet the requirements of enterprise and campus network.

Powerful integrated GPON access capability

  • Supports high bandwidth. The downstream rate is up to 2.488 Gbit/s and the upstream rate is up to 1.244 Gbit/s.
  • Supports long distance. The maximum physical transmission distance of the ONT is 60 km. The physical distance between the farthest ONT and the nearest ONT can be up to 20 km.
  • Supports high split ratio. The 16-port GPON board supports 1:128 split ratio, which increases the access capacity and saves the optical fiber resources.
  • Support high density. The MA5600T series provides the 8-port and 16-port GPON board to increase the system capacity.

Powerful QoS capability

  • Supports priority control (based on the port, MAC address, IP address, TCP port ID, or UDP port ID), priority mapping and modification based on the ToS field and 802.1p, and DSCP differentiated services.
  • Supports bandwidth control (based on the port, MAC address, IP address, TCP port ID, or UDP port ID) with a control granularity of 64 kbit/s.
  • Supports three queue scheduling modes: priority queue (PQ), weighted round robin (WRR), and PQ+WRR.
  • Supports HQoS, which assures the multi-service bandwidth for multiple users: The first level assures the user bandwidth, and the second level assures the bandwidth for each service of each user. This ensures that the assured bandwidth is allocated absolutely and the burst bandwidth is allocated fairly.

Comprehensive security features

1. System security measure

  • Protection against the DoS (denial of service) attack.
  • MAC (media access control) address filtering.
  • Anti-ICMP/IP packet attack.
  • Source address routing filtering.
  • Blacklist.

2. User security measure

  • DHCP (Dynamic Host Configuration Protocol) Option 82 to enhance the DHCP security.
  • Binding between MAC/IP addresses and ports.
  • Anti-MAC spoofing and anti-IP spoofing.
  • Authentication based on the serial number (SN) and password of the ONU/ONT.
  • Triple churning encryption.
  • Encrypted broadcast transmission in the GPON downstream direction for different users, such as AES (advanced encryption standard) 128-bit encryption.
  • GPON type B OLT dual homing.
  • Smart link and monitor link for the network with dual upstream channels.

High reliability design

  • Adopts 1+1 redundancy backup for the control board and the upstream interface board.
  • Provides the lightning-proof and anti-interference functions.
  • Supports fault pre-warning on the exhaustive (consumed) units and parts, such as the fan, power supply, and battery.
  • The 1+1 (type B) protection for the PON port and the 300 ms level service protection switchover for the backbone optical fiber are supported.
  • Supports main control board in-service upgrade .
  • Supports high temperature detection to ensure the system safety.
  • The functions of querying the board temperature, setting the temperature threshold, and high temperature shutdown are supported.
  • Supports hot swappable for all service boards and the control boards.
  • Provides soft-start circuit, protective circuit, current-limit protection, and short circuit protection for the input power of the boards in the subrack to protect the boards against lightning strikes and surges.
  • Supports GPON type C OLT dual homing.
  • Supports smart link and monitor link for the network with dual upstream channels.

Green

  • With Huawei self-developed GPON chipsets, the maximum power consumption of the16-port GPON line card is only 73W.
  • Unique energy-saving bus, the idle service card can be powered off.

 Specification

ItemMA5603T
Board configuration2 slots for control boards
6 slots for service boards
1 slot for the universal interface board
2 slots for upstream interface boards
2 slots for power interface boards.
Switching capacity of the backplane bus1.5 Tbit/s (H801MABO)
2 Tbit/s (H802MABO)
Supported control board and its switching capacitySCUN: 480 Gbit/s in active/standby mode or 960 Gbit/s in load-sharing mode
SCUH: 960 Gbit/s in active/standby mode or 1920 Gbit/s in load-sharing mode
SCUB: 48 Gbit/s
SCUF: 128 Gbit/s
System Layer 2 packet forwarding rateSCUN: 480 Gbit/s in active/standby mode or 960 Gbit/s in load-sharing mode
SCUH: 960 Gbit/s in active/standby mode or 1920 Gbit/s in load-sharing mode
SCUB: 48 Gbit/s
SCUF: 128 Gbit/s
Switching/Forwarding delayhort forwarding delay: The 100 Mbit/s Ethernet port sends the 64-byte Ethernet packets at a delay shorter than 20 μs.
BER in full loadBER of a port when the port transmits data in full load < 10 e-7
System reliability specificationsSystem: redundant configuration.
System availability for the typical configuration: > 99.999%
Mean time between failures (MTBF): about 45 years.

NOTE
Due to different network environments and different boards used by devices, the above-mentioned MTBF (45 years) of the is only for reference. The average repair time for field replaceable units (FRUs) is about 2 hours. The preceding values are only for reference. For details, contact the related Huawei engineers.

Maximum number of ADSL2+ ports in a subrack384
Maximum number of VDSL2 ports in a subrack384
Maximum number of EFM SHDSL ports in a subrack192
Maximum number of TDM SHDSL ports in a subrack96
Maximum number of POTS ports in a subrack384
Maximum number of ISDN BRA ports in a subrack192
Maximum number of ISDN PRA ports in a subrack64
Maximum number of GPON ports in a subrack96
Maximum number of 10G GPON ports in a subrack48
Maximum number of EPON ports in a subrack96
Maximum number of 10G EPON ports in a subrack48
Maximum number of P2P GE ports in a subrack288
Maximum number of upstream ports (GE ports in the GIU slot) in a subrack8
Maximum number of upstream ports (10GE ports in the GIU slot) in a subrack4
Maximum number of upstream ports (PON ports in the GIU slot) in a subrack2
Maximum number of extended subracks connected to a master subrack32
Operating environmentOperating temperature: -40°C to +65°C
Operating humidity:5% RH to 95% RH
Atmospheric pressure: 61 kPa to106 kPa
Altitude: ≤ 4000 m
NOTE

The air density varies with the altitude, which affects the heat dissipation capabilities of devices. Therefore, the working temperature of the device changes with the altitude.



Other product information

Trade Information

1)   Trade terms: FOB,CIF,CFR,etc

2)   Price Terms: L/C,D/P,T/T,Western Union,PAYPAL

3)   Payment Terms: T/T in advance

4)   Port: Shanghai

5)   Lead time: Within 7 working days after receipt payment.

6)   Shipment: Express, Air, Sea

7)   Sample availability: Yes( not free)



After-Sales Service

1)  We can provide detail documents and remote help for device installation and configuration.

2)  Warranty: 1 year. ( After the quality guarantee period began to charge appropriate maintenance service fee.)

3)   Our company promises goods enjoy full return due to quality problem since goods delivered within 7 days or 15 days , returned goods must keep original state and it’s accessories are complete.
