Quick Details

  • Place of Origin: China (Mainland)
  • Brand Name: Huawei
  • Model Number: MA5600T
  • Huawei MA5600T application: Large Capacity access Device
  • Huawei MA5600T Name: GPON OLT
  • Huawei MA5600T Attribute: fiber-copper access Device
  • MA5600T Control board: SCUB/SCUN/SCUK/SCUH
  • MA5600T Upstream board: GICF/GICK/GICD/GSCA
  • MA5600T Ethernet service access board: ETHA/ETHB
  • MA5600T P2P interface board: OPGD/OPGE
  • Number of VDSL2 ports: Maximum: 1024
  • MA5600T Number of ADSL2+ ports: Maximum: 1024
  • MA5600T subrack: 490 mm *275.8 mm * 447.2 mm.

Packaging & Delivery

Packaging Details Original Huawei MA5600T GPON OLT Carton Package
Delivery Time Within 7 days after the receipt of the payment



Large Capacity fiber-copper access Device Huawei MA5600T GPON OLT



Product Overview



Large Capacity fiber-copper access Device Huawei MA5600T GPON OLT

  • The MA5600T is an integrated fiber-copper access device, and can serve as a DSLAM, OLT, or aggregation OLT.
  • The MA5600T, if serving as a large-capacity DSLAM, supports ADSL2+, VDSL2, SHDSL, and POTS access modes.
  • The MA5600T, if serving as a large-capacity OLT, supports GPON, 10G GPON, and P2P access modes.
  • The MA5600T, if serving as an aggregation OLT, supports FTTB/FTTC/DSLAM aggregation access, which simplifies the network architecture, reduces types and number of devices, and minimizes the CO equipment room space and energy consumption.
Product Appearance

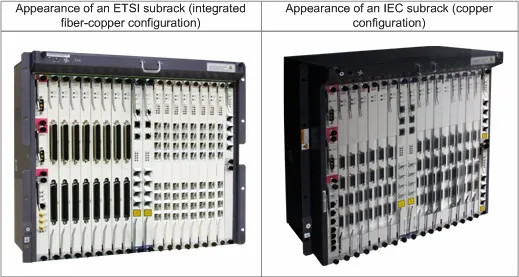

MA5600T GPON OLT Appearance




Product Application



MA5600T GPON OLT Deployment Scenarios

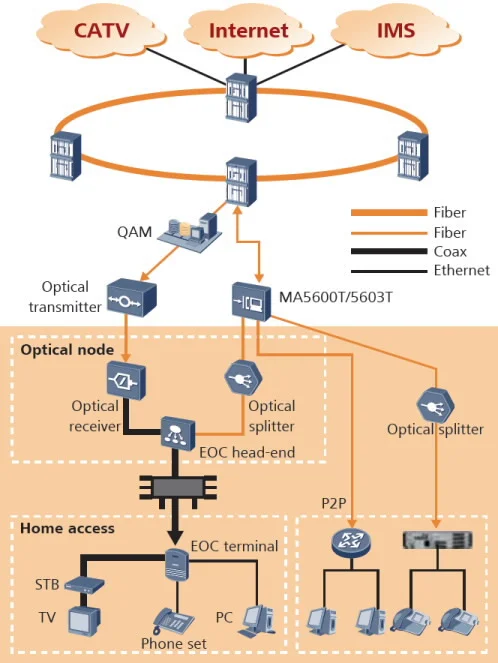

Network topology application for triple play in the broadcast and television industry



Network topology application for automatic power distribution in the electric power industry





Product Feature



MA5600T GPON OLT Characterstics

Large-capacity platform with Access and Aggregation Integration

  • Developed based on the iMAP hardware platform and the IAS software platform of Huawei, the MA5600T series product takes on the advanced architecture and design.
  • The switching capacity of the backplane is up to 3.2 Tbit/s, and the bidirectional switching capacity of the control board is up to 480 Gbit/s.
  • High density GE/10GE interfaces for cascading, up to 36*10GE or 384*GE interfaces, no need for additional investment of aggregation switches.
  • Each GPFD board supports 16 GPON ports, based on the 1:128 split ratio, the single subrack supports up to 16K ONTs.
  • Sharing the development platform with Huawei's broadband access devices, the MA5600T series product support the Layer 2 and Layer 3 features of the broadband access devices to provide user-oriented and future-oriented functions.
  • GE/GPON/NGPON coexisting on the same platform.
  • Aggregation switches.

Any Access

  • Large capacity IPTV service provision, 8K multicast users and 4K multicast channels and 2k concurrent multicast channels.
  • HQoS support 3-level QoS (Different ISP/ service/user) guarantees OLT wholesale.
  • Traditional E1 service access, Native TDM or CESoP for traditional E1 service of enterprise and mobile base station access.
  • E-LAN function for local traffic inter-connection, meet the requirements of enterprise and campus network.

Powerful integrated GPON access capability

  • MA5600T GPON OLT Supports high bandwidth. The downstream rate is up to 2.488 Gbit/s and the upstream rate is up to 1.244 Gbit/s.
  • MA5600T GPON OLT Supports long distance. The maximum physical transmission distance of the ONT is 60 km. The physical distance between the farthest ONT and the nearest ONT can be up to 20 km.
  • MA5600T GPON OLT Supports high split ratio. The 16-port GPON board supports 1:128 split ratio, which increases the access capacity and saves the optical fiber resources.
  • MA5600T GPON OLT Support high density. The MA5600T series provides the 8-port and 16-port GPON board to increase the system capacity.

Powerful QoS capability

  • MA5600T GPON OLT Supports priority control (based on the port, MAC address, IP address, TCP port ID, or UDP port ID), priority mapping and modification based on the ToS field and 802.1p, and DSCP differentiated services.
  • MA5600T GPON OLT Supports bandwidth control (based on the port, MAC address, IP address, TCP port ID, or UDP port ID) with a control granularity of 64 kbit/s.
  • MA5600T GPON OLT Supports three queue scheduling modes: priority queue (PQ), weighted round robin (WRR), and PQ+WRR.
  • MA5600T GPON OLT Supports HQoS, which assures the multi-service bandwidth for multiple users: The first level assures the user bandwidth, and the second level assures the bandwidth for each service of each user. This ensures that the assured bandwidth is allocated absolutely and the burst bandwidth is allocated fairly.

Comprehensive security features

 System security measure

  • Protection against the DoS (denial of service) attack.
  • MAC (media access control) address filtering.
  • Anti-ICMP/IP packet attack.
  • Source address routing filtering.
  • Blacklist.

 User security measure

  • DHCP (Dynamic Host Configuration Protocol) Option 82 to enhance the DHCP security.
  • Binding between MAC/IP addresses and ports.
  • Anti-MAC spoofing and anti-IP spoofing.
  • Authentication based on the serial number (SN) and password of the ONU/ONT.
  • Triple churning encryption.
  • Encrypted broadcast transmission in the GPON downstream direction for different users, such as AES (advanced encryption standard) 128-bit encryption.
  • GPON type B OLT dual homing.
  • Smart link and monitor link for the network with dual upstream channels.

High reliability design

  • MA5600T GPON OLT Adopts 1+1 redundancy backup for the control board and the upstream interface board.
  • MA5600T GPON OLT Provides the lightning-proof and anti-interference functions.
  • MA5600T GPON OLT Supports fault pre-warning on the exhaustive (consumed) units and parts, such as the fan, power supply, and battery.
  • The 1+1 (type B) protection for the PON port and the 300 ms level service protection switchover for the backbone optical fiber are supported.
  • MA5600T GPON OLT Supports main control board in-service upgrade .
  • MA5600T GPON OLT Supports high temperature detection to ensure the system safety.
  • The functions of querying the board temperature, setting the temperature threshold, and high temperature shutdown are supported.
  • MA5600T GPON OLT Supports hot swappable for all service boards and the control boards.
  • MA5600T GPON OLT Provides soft-start circuit, protective circuit, current-limit protection, and short circuit protection for the input power of the boards in the subrack to protect the boards against lightning strikes and surges.
  • MA5600T GPON OLT Supports GPON type C OLT dual homing.
  • MA5600 GPON OLT Supports smart link and monitor link for the network with dual upstream channels.

Green

  • With Huawei self-developed GPON chipsets, the maximum power consumption of the16-port GPON line card is only 73W.
  • Unique energy-saving bus, the idle service card can be powered off.



Specification



MA5600T GPON OLT Specification

Item

MA5600T (ETSI)

MA5600T (IEC)

Board configuration

2 slots for control boards

16 slots for service boards

1 slot for the universal interface board

2 slots for upstream interface boards

2 slots for power interface boards.

2 slots for control boards

14 slots for service boards

1 slot for the universal interface board

2 slots for upstream interface boards

2 slots for power interface boards.

Switching capacity of the backplane bus

3.2 Tbit/s



Supported control board and its switching capacity

SCUN: 480 Gbit/s in active/standby mode or 960 Gbit/s in load-sharing mode

SCUH: 960 Gbit/s in active/standby mode or 1920 Gbit/s in load-sharing mode

SCUB: 48 Gbit/s

SCUF: 128 Gbit/s



System Layer 2 packet forwarding rate

SCUN: 480 Gbit/s in active/standby mode or 960 Gbit/s in load-sharing mode

SCUH: 960 Gbit/s in active/standby mode or 1920 Gbit/s in load-sharing mode

SCUB: 48 Gbit/s

SCUF: 128 Gbit/s



Switching/Forwarding delay

Short forwarding delay: The 100 Mbit/s Ethernet port sends the 64-byte Ethernet packets at a delay shorter than 20 μs.



BER in full load

BER of a port when the port transmits data in full load < 10 e-7



System reliability specifications

System: redundant configuration.

System availability for the typical configuration: > 99.999%

Mean time between failures (MTBF): about 45 years.

NOTE:

Due to different network environments and different boards used by devices, the above-mentioned MTBF (45 years) of the MA5600T/MA5603T/MA5608T is only for reference. The average repair time for field replaceable units (FRUs) is about 2 hours. The preceding values are only for reference. For details, contact the related Huawei engineers.



Maximum number of ADSL2+ ports in a subrack

1024

896

Maximum number of VDSL2 ports in a subrack

1024

896

Maximum number of EFM SHDSL ports in a subrack

512

448

Maximum number of TDM SHDSL ports in a subrack

256

224

Maximum number of POTS ports in a subrack

1024

896

Maximum number of ISDN BRA ports in a subrack

512

448

Maximum number of ISDN PRA ports in a subrack

64

56

Maximum number of GPON ports in a subrack

256

Maximum number of 10G GPON ports in a subrack

128

Maximum number of P2P FE ports in a subrack

768

Maximum number of P2P GE ports in a subrack

768

Maximum number of upstream ports (GE ports in the GIU slot) in a subrack

8

8

Maximum number of upstream ports (10GE ports in the GIU slot) in a subrack

4

4

Maximum number of upstream ports (PON ports in the GIU slot) in a subrack

2 (in the active/standby mode)

2 (in the active/standby mode)

Maximum number of extended subracks connected to a master subrack

32

32

Operating environment

Operating temperature (indoor cabinet):

  • A cabinet configured with a subrack: -25°C to +65°C
  • A cabinet configured with 2 subracks: -25°C to +55°C

Operating humidity: 5% RH to 95% RH

Atmospheric pressure: 61 kPa to106 kPa

Altitude: ≤ 4000 m


NOTE:

The air density varies with the altitude, which affects the heat dissipation capabilities of devices. Therefore, the working temperature of the device changes with the altitude.

Other information

Trade Information
1) Payment Terms: T/T ,Paypal, Western Union in advance
2) Port: Shanghai
3) Shipment: Express, Air, Sea
4) Express Option:DHL,TNT,UPS,FEDEX etc.
