Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Huawei
  • Model Number: MA5600T
  • Type: OLT
  • Dimensions: 447 mm x 490 mm x 275.8 mm
  • Operating temperature: -25℃~+55℃
  • Operating humidity: 5%RH~95%RH
  • SCUN: control and uplink board
  • PRTE: -38.4 V to -72 V Power board
  • ADPE: 64-port ADSL2+ over POTS Service
  • ASPB: 64-port VOIP Subscriber Board
  • GICF: uplink board(none module)

Packaging & Delivery

Packaging Details Original HUAWEI carton package
Delivery Time Within 3~5 working days after receiving the full payment

    Huawei SmartAX MA5600t Optical Line Terminal Equipment GPON OLT



Product Description
Huawei SmartAX MA5600t Optical Line Terminal Equipment GPON OLT





  • As the first aggregation OLT in the industry, the SmartAX MA5600T series products integrate the aggregation and switching functions, provide the high-density GPON and Ethernet P2P access, abundant GE/10GE ports, high precision clock and strong platform capacity, provide the basic voice, high-speed internet, fluent video, steady TDM and the Ethernet private line services, which can improve the network reliability, reduce the investment in network construction, and reduce the O&M costs.
  • The MA5600T series product includes the large-capacity MA5600T and the medium-capacity MA5603T. The hardware and software of these two models are fully compatible with each other to reduce the costs of spare parts and O&M costs. The difference of MA5600T and MA5603T is that MA5600T provides 16 service slots and MA5603T provides 6 service slots.









Features



Discover Huawei's reliable SmartAX MA 5600T Series optical access solutions, featuring high capacity platforms with easy transition to ultra-bandwidth access.

  • High reliability: OLT two-node cluster hot backup, remote Disaster Recovery (DR), hitless upgrade, Quality Of Service (QoS), and end-to-end (E2E) high reliability design
  • Multiple methods of access: Includes E1 private line access, native TDM (CESoP/SAToP), E-LAN, and non-convergence IPTV user access
  • Simple evolution: GPON, 10G PON, and 40G PON share a single platform, enabling smooth evolution and supporting ultra-bandwidth access IPv4/IPv6 dual-stack
  • Environmentally friendly and energy-wise design: Automatically powers off any idle boards and intelligent fan speed adjustment, effectively lowers power consumption of idle boards







Large-capacity platform with Access and Aggregation Integration

  • Developed based on the iMAP hardware platform and the IAS software platform of Huawei, the MA5600T series product takes on the advanced architecture and design.
  • The switching capacity of the backplane is up to 3.2 Tbit/s, and the bidirectional switching capacity of the control board is up to 480 Gbit/s.
  • High density GE/10GE interfaces for cascading, up to 36*10GE or 384*GE interfaces, no need for additional investment of aggregation switches.
  • Each GPBD board supports eight GPON ports, based on the 1:128 split ratio, the single subrack supports up to 8K ONTs. In 2012, Huawei will launch 16-port GPON board which can supports 16K ONTs.
  • Sharing the development platform with Huawei's broadband access devices, the MA5600T series product support the Layer 2 and Layer 3 features of the broadband access devices to provide user-oriented and future-oriented functions.
  • GE/GPON/NGPON coexisting on the same platform.
  • Aggregation switches.


Any Access

  • Large capacity IPTV service provision, 8K multicast users and 4K multicast channels and 2k concurrent multicast channels.
  • HQoS support 3-level QoS (Different ISP/ service/user) guarantees OLT wholesale.
  • Traditional E1 service access, Native TDM or CESoP for traditional E1 service of enterprise and mobile base station access.
  • E-LAN function for local traffic inter-connection, meet the requirements of enterprise and campus network.

Powerful integrated GPON access capability

  • Supports high bandwidth. The downstream rate is up to 2.488 Gbit/s and the upstream rate is up to 1.244 Gbit/s.
  • Supports long distance. The maximum physical transmission distance of the ONT is 60 km. The physical distance between the farthest ONT and the nearest ONT can be up to 20 km.
  • Supports high split ratio. The 8-port GPON board supports 1:128 split ratio, which increases the access capacity and saves the optical fiber resources.
  • Support high density. The MA5600T series provides the 8-port and 16-port GPON board to increase the system capacity.

Powerful QoS capability

  • Supports priority control (based on the port, MAC address, IP address, TCP port ID, or UDP port ID), priority mapping and modification based on the ToS field and 802.1p, and DSCP differentiated services.
  • Supports bandwidth control (based on the port, MAC address, IP address, TCP port ID, or UDP port ID) with a control granularity of 64 kbit/s.
  • Supports three queue scheduling modes: priority queue (PQ), weighted round robin (WRR), and PQ+WRR.
  • Supports HQoS, which assures the multi-service bandwidth for multiple users: The first level assures the user bandwidth, and the second level assures the bandwidth for each service of each user. This ensures that the assured bandwidth is allocated absolutely and the burst bandwidth is allocated fairly.



Appearance


















Application



As a multi-service access platform, the MA5600T series support multiple access modes and multiple network topologies to meet users' network topology requirements on different environment and services.


Figure 1 Network topology application for triple play in the broadcast and television industry



FTTH Network Application

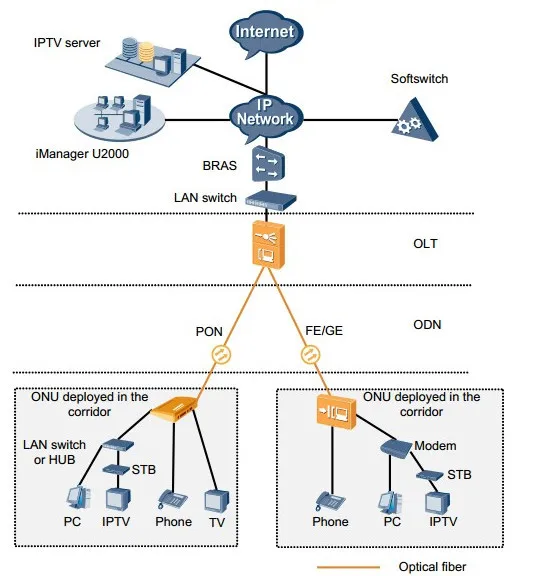

Example network of the FTTB application



Specification



System performance parameters of the MA5600T/MA5603T/MA5608T



Parameter

Specification

Backplane bus switching capacity

MA5600T: 3.2 Tbit/s(H801MABC), (H802MABC)

MA5603T: 1.5 Tbit/s(H801MABO), 2 Tbit/s(H802MABO)

MA5608T: 720 Gbit/s

System L2 packet forwarding rate

SCUB: 72 Mpps

SCUN: 726 Mpps(Active/Standby mode), 1452 Mpps(Load-sharing mode)

SCUF: 190 Mpps

SCUH: 1428 Mpps(Active/Standby mode), 2856 Mpps(Load-sharing mode)

MCUD/MCUD1: 190Mpps(Active/Standby mode), 380Mpps(Load-sharing mode)

Control board switching capacity

SCUB: 48 Gbit/s

SCUN: 480 Gbit/s(Active/Standby mode), 960Gbit/s(Load-sharing mode)

SCUF: 128 Gbit/s

SCUH: 960 Gbit/s(Active/Standby mode), 1920Gbit/s(Load-sharing mode)

MCUD/MCUD1: 128Gbit/s(Active/Standby mode),256Gbit/s(Load-sharing mode)

Switching/Forwarding delay

Short forwarding delay: The 100 Mbit/s Ethernet port sends the 64-byte Ethernet packets at a delay shorter than 20  μs .

BER in full load

BER of port when transmitting data in full load < 10 e-7





Board Type

Board

Full Name

Function

Control board

H801SCUH

Super Control Unit Board
  • System control and management unit
  • Local and remote maintenance
  • Active/standby switchover
  • Load balancing
  • Ethernet synchronization
  • Built-in 2GB CF card
  • GE/10GE/20GE channel to the service board
  • Environmental monitoring parameters
  • Supports the function of reading the temperature and the high-temperature alarm.
  • Four SFP GE/10GE ports for upstream transmission or cascading

H801SCUN

super control unit board
  • System control and management unit
  • Local and remote maintenance
  • Active/standby switchover
  • Load sharing
  • GE or 10GE channel to the service board
  • Environmental monitoring parameters
  • H801CKMC daughter board
  • Four GE upstream optical ports with the SFP optical module

Upstream interface board

H801GICK

2-port GE optical interface board
  • Upstream transmission and cascading
  • Two SFP GE optical/electrical ports (auto-adaptation)
  • Ethernet clock synchronization

H801X2CS

2-port 10GE upstream interface board
  • Two 10GE upstream ports
  • 10GE synchronous Ethernet

Universal interface board

H801CITB

combo interface transfer board
  • Input and output of external alarms
  • Two BITS inputs (this function requires the support of an H801BITSB daughter board)

Power interface board

H801PAIC

power board
  • One -48 V power input
  • Current filtering and transient high voltage protection for input power
  • Under-voltage detection, input power detection (whether exists or not), and fault detection
  • Alarm, board type signal, and presence signal reporting
  • ALARM indicator

Service board

GPON interface board

H802GPBD

8-port GPON OLT interface board
  • Eight GPON SFP ports (one-fiber bi-directional port)
  • A maximum of 128 ONTs for each GPON port
  • Class B+ and class C+ optical modules
  • Received signal strength indicator (RSSI) detection and controlled optical signal transmission of the optical module
  • Temperature query and board power-off in case of a high temperature

H805GPBD

8-port GPON OLT interface board
  • Eight GPON SFP ports (one-fiber bi-directional port)
  • A maximum of 128 ONTs for each GPON port
  • Class B+ and class C+ optical modules
  • Received signal strength indicator (RSSI) detection and controlled optical signal transmission of the optical module
  • ONU-based shaping
  • Temperature query and board power-off in case of a high temperature

Combo board

H85BCVME

48-port VDSL2&POTS combo board
  • 48-channel VDSL2 and POTS access service
  • Built-in splitter
  • Configurable impedance for the POTS port; working with the built-in splitter to support 600-ohm or 900-ohm impedance
  • Port protection
  • Polarity-reversal accounting, and pulse accounting
  • Balanced ringing (unbalanced ringing is not supported)
  • POTS metallic loop test (MELT)
  • Single-ended loop test (SELT) and dual-ended loop test (DELT)
  • ITU-T G.711, ITU-T G.723.1, and ITU-T G.729 codec
  • ITU-T T.30 fax and ITU-T T.38 fax
  • G.992.1 Annex A/B, G.992.2 Annex A, G.992.3 Annex A/B/L(RE-ADSL2)/M/J, and G.992.5 Annex A/B/M/J
  • VDSL2 8a, 8b, 8c, 8d, 12a, 12b, and 17a profiles
  • G.INP physical layer retransmission
  • VLAN based user bridging

SPU board

H801SPUB

service processing unit board
  • 10 Gbit/s (unidirectional 10 Gbit/s, bidirectional 5 Gbit/s) MPLS switching capability
  • One 10GE attachment unit interface (XAUI) to each control board
  • Active/standby switchover of the control boards

Voice board

H802EDTB

16-port T1 service board
  • 16 channels of E1/T1 access services
  • Independent upstream and downstream transmission of each channel of E1/T1 clock signals
  • Configuration of the Tx clock source of an E1/T1 port
  • Specifying the line clock of an E1/T1 port as the system clock source
  • Timeslot binding
  • TDM PWE3 service
  • CPE mode

P2P interface board

H802OPGD

48-port GE/FE optical interface board
  • 48 (CSFP) or 24 (SFP) channels of GE/FE P2P optical access services
  • Cascading and aggregation of DSLAMs or MxUs
  • Synchronous Ethernet clock issuing
  • Two-channel one-fiber bi-directional CSFP, one-channel two-fiber bi-directional SFP, and one-channel one-fiber bi-directional SFP optical modules

H802OPGE

48-port GE/FE optical interface board
  • 48 (CSFP) or 24 (SFP) channels of GE/FE P2P optical access services
  • Cascading and aggregation of DSLAMs or MxUs
  • Synchronous Ethernet clock issuing
  • Two-channel one-fiber bi-directional CSFP, one-channel two-fiber bi-directional SFP, and one-channel one-fiber bi-directional SFP optical modules
  • 1588v2
  • Jumbo frame

Ethernet service access board

H801ETHB

Ethernet service access board
  • Ethernet upstream transmission
  • Ethernet cascading
  • Eight SFP GE optical modules
  • Intra-board aggregation





ItemMA5600T(ETSI)MA5600T(IEC)MA5603TMA5608T
Supported cabinetIndoor cabinet: N63E-22, N66E-18
Outdoor cabinet: F01D500, F01D2000
Indoor cabinet: N66-22
Outdoor cabinet: N/A
Indoor cabinet: N66E-18
Outdoor cabinet: F01D500, F01S300
Indoor cabinet: N63E-22
Outdoor cabinet: F01S200
Board configuration2 slots for control boards
16 slots for service boards
1 slot for the universal interface board
2 slots for upstream interface boards
2 slots for power interface boards.
2 slots for control boards
14 slots for service boards
1 slot for the universal interface board
2 slots for upstream interface boards
2 slots for power interface boards.
2 slots for control boards
6 slots for service boards
1 slot for the universal interface board
2 slots for upstream interface boards
2 slots for power interface boards.
2 slots for control boards
2 slots for service boards
1 slots for the power interface board.
Switching capacity of the backplane bus3.2 Tbit/s3.2 Tbit/s1.5 Tbit/s (H801MABO)
2 Tbit/s (H802MABO)
720 Gbit/s
Supported control board and its switching capacitySCUN: 480 Gbit/s in active/standby mode or 960 Gbit/s in load-sharing mode
SCUH: 960 Gbit/s in active/standby mode or 1920 Gbit/s in load-sharing mode
SCUB: 48 Gbit/s
SCUF: 128 Gbit/s
MCUD/MCUD1: 128 Gbit/s in active/standby mode or 256 Gbit/s in load-sharing mode
System Layer 2 packet forwarding rateSCUN: 480 Gbit/s in active/standby mode or 960 Gbit/s in load-sharing mode
SCUH: 960 Gbit/s in active/standby mode or 1920 Gbit/s in load-sharing mode
SCUB: 48 Gbit/s
SCUF: 128 Gbit/s
MCUD/MCUD1: 128 Gbit/s in active/standby mode or 256 Gbit/s in load-sharing mode
Switching/Forwarding delayShort forwarding delay: The 100 Mbit/s Ethernet port sends the 64-byte Ethernet packets at a delay shorter than 20 μs.
BER in full loadBER of a port when the port transmits data in full load < 10 e-7
System reliability specificationsSystem: redundant configuration.
System availability for the typical configuration: > 99.999%
Mean time between failures (MTBF): about 45 years.

NOTE
Due to different network environments and different boards used by devices, the above-mentioned MTBF (45 years) of the is only for reference. The average repair time for field replaceable units (FRUs) is about 2 hours. The preceding values are only for reference. For details, contact the related Huawei engineers.

Maximum number of ADSL2+ ports in a subrack1024896384128
Maximum number of VDSL2 ports in a subrack1024896384128
Maximum number of EFM SHDSL ports in a subrack51244819264
Maximum number of TDM SHDSL ports in a subrack2562249632
Maximum number of POTS ports in a subrack1024896384128
Maximum number of ISDN BRA ports in a subrack51244819264
Maximum number of ISDN PRA ports in a subrack64566464
Maximum number of GPON ports in a subrack256-9632
Maximum number of 10G GPON ports in a subrack128-488
Maximum number of EPON ports in a subrack2562249632
Maximum number of 10G EPON ports in a subrack1281124816
Maximum number of P2P FE ports in a subrack768768 96
Maximum number of P2P GE ports in a subrack768-28896
Maximum number of upstream ports (GE ports in the GIU slot) in a subrack888-
Maximum number of upstream ports (10GE ports in the GIU slot) in a subrack444-
Maximum number of upstream ports (PON ports in the GIU slot) in a subrack2 (in the active/standby mode)2 (in the active/standby mode)2-
Maximum number of extended subracks connected to a master subrack323232-
Operating environmentOperating temperature (indoor cabinet):

1. A cabinet configured with a subrack: -25°C to +65°C
2. A cabinet configured with 2 subracks: -25°C to +55°C

Operating humidity: 5% RH to 95% RH
Atmospheric pressure: 61 kPa to106 kPa
Altitude: ≤ 4000 m



Operating temperature: -40°C to +65°C
Operating humidity:5% RH to 95% RH
Atmospheric pressure: 61 kPa to106 kPa
Altitude: ≤ 4000 m
Operating temperature:-40°C to +65°C
Operating humidity: 5% RH to 95% RH
Atmospheric pressure: 61 kPa to106 kPa
Altitude: ≤ 4000 m
NOTE

The air density varies with the altitude, which affects the heat dissipation capabilities of devices. Therefore, the working temperature of the device changes with the altitude.




Packaging & Shipping





Trade Info:



  •           Trade terms: FOB,CIF,CFR,etc
  •           Price Terms: L/C,D/P,T/T,Western Union,PAYPAL
  •           Payment Terms: T/T in advance
  •           MOQ:1 pcs
  •           FOB Price:US $1 - 1,000 / Piece
  •           Port: Shanghai
  •           Lead time: Within 5 working days after receipt payment.
  •           Shipment: Express, Air, Sea
  •           Supply capability: 200 Piece/Pieces per Week
  •           Sample availability: Yes( not free)
  •           Package information: carton package with Huawei original package









Company Information



Shanghai Combasst Industry Development Co,.Ltd. is a professional trading company which commits to import and export business.

Main products: communication equipment, machinery equipment, household appliances, electronic products, daily necessities.



Main agency business: declare at customs or clearance, commodity inspection, warehousing, international transport, receipt and payment of foreign exchange, international insurance, pay for export drawback, etc.



We regard “innovation, high quality, good faith, service” as our company’s purpose. And we also stick to our company’s spirit that “self-confidence, harmonious, pragmatic, up-and-coming”. We are willing to sincerely cooperate with both domestic and foreign customers, develop trade as well as friendship.



Our Services
  • We can provide detail documents and remote help for device installation and configuration.
  • Warranty: 1 year. ( After the quality guarantee period began to charge appropriate maintenance service fee.)
  • Our company promises goods enjoy full return due to quality problem since goods delivered within 7 days or 15 days ,returned goods must keep original state and it’s accessories are complete.





Transaction History of the Supplier

Below is the information about the supplier's transactions conducted via Alibaba.com. If you require further details regarding the transaction data, please contact the supplier directly.

Transaction Overview

Transactions

Transaction Details

This supplier has completedtransactions with buyers from .

Shipping Destination
Transaction Value
Transaction Date
Email to this supplier
China (Mainland) | Manufacturer, Trading Company
Transaction Level:
Supplier Assessments:
The supplier supports Trade Assurance – A free service that protects your orders from payment to delivery.
Supplier's Trade Assurance Limit: US $25,000
Learn More
