Quick Details

  • Products Status: Stock
  • Application: HD video and high-speed Internet
  • Function: Firewall, QoS, VPN, wifi
  • Certification: CE
  • Brand Name: Huawei
  • Model Number: HG630
  • Place of Origin: Shanghai, China (Mainland)
  • Classification: WiFi Modem Router
  • Interface Type: RJ45 AND RJ11
  • Transmission Rate: 300.0 Mbit/s
  • Keywords: ADSL2+,VDSL2, Modem
  • Routing: NAT, NAPT and RIP v1/v2
  • WPS function: WPS2.0 a key secure connection
  • IPv6 features: IPv6, IPv4 & IPv6 dual stack ,DS-Lite modes
  • Wireless LAN: 802.11b, 802.11g, 802.11n (2.4GHz ~ 2.4835GHz).
  • DSL: VDSL2 and ADSL2 +
  • 3G uplink: 3G data cards Internet

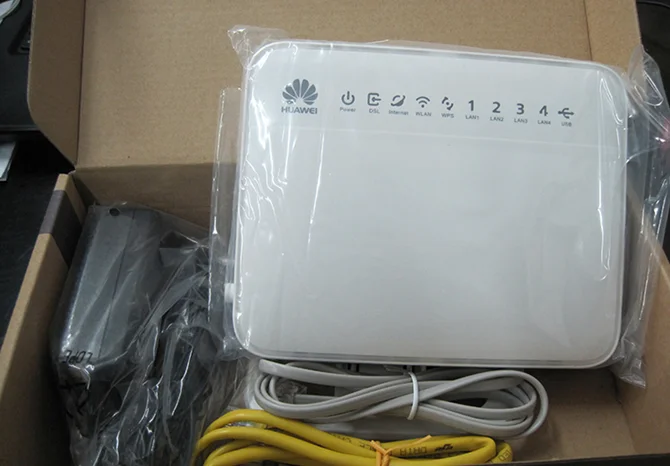

Packaging & Delivery

Packaging Details WiFi Modem Router :
Huawei standard package
Delivery Time within 5-7 days after receive payment

Huawei ADSL/VDSL2 Modem HG630 WiFi Modem Router

Product Overview



1.Overview



The HG630 is a new generation wireless gateway that supports very-high-data-rate digital subscriber line 2 (VDSL2). The HG630 is designed for mid-range and high-end users using high bandwidth services, such as HD video. The HG630 comes with Broadcom's latest chipset solution with the vectoring functionthat effectively solves the VDSL2 crosstalk issue. The vectoring function keeps the
transmission rate at 100 Mbit/s when the user is within a range of 300 meters. Without vectoring, the transmission rate decreases to 70 Mbit/s when the user is 300 meters away. For HD video and high-speed Internet, the coverage range can be up to 800 meters (without vectoring: 500 meters). The HG630 effectively reduces the cost to carriers and guarantees high quality HD video services. Using the 802.11n and 2 x 2 multiple-input and multiple-output (MIMO) technologies, the HG630 provides wireless transmission rates of up to 300 Mbit/s, making it an ideal choice for HD video streaming and online gaming.
With the DLNA function enabled on the HG630, you can built your own network access server (NAS) by connecting USB storage to the HG630's USB port.



2.Details Image



We have lots of HG630 in stock.



Please contact us to know more about HG630



The more you buy, the more cheaper one you will get.

Indicator

Status

Description

Power

On

The HG630 is powered on.

Off

The HG630 is powered off or faulty.

DSL

Blinking

The HG630 is being activated through DSL.

Steady on

The HG630 is activated through DSL.

Off

The HG630 is powered off.

The DSL port is not connected.

Internet

On

The HG630 is working in routing mode.

No data is being transmitted.

Blinking

The HG630 is working in routing mode.

Data is being transmitted.

Off

The HG630 is working in bridge mode.

The HG630 is powered off.

WLAN

On

The WLAN connection is set up, but no data is being transmitted.

Blinking

The WLAN connection is set up, and data is being transmitted.

Off

The WLAN function is disabled.

WPS

Blinking

A wireless client, such as a computer installed with a wireless network adapter, is connecting to the HG630 using the WPS function.

This process lasts for no longer than 120 seconds.

On

A wireless connection is set up between the HG630 and a wireless client using the WPS function.

The WPS indicator is on for about 300 seconds, and then turns off.

Off

The WPS function is disabled or faulty.

LAN1 ~ LAN4

On

The HG630 is connected to a device properly.

Blinking

Data is being transmitted between the HG630 and the device connected.

Off

No connection is set up on the port.

USB

Blinking

A USB device is connected to the HG630 and data is being transmitted on the USB port.

Steady on

A USB device is connected to the HG630

A portable storage device is connected to the USB port.

Off

The USB port is not connected.

The HG630 is powered off.





No.

Description

1

WPS button, which is used to enable the WPS negotiation function.

2

WLAN button, which is used to enable or disable wireless network function quickly.

3

Power button, which is used to power on or off the HG630.

4

DSL interface, which is used to connect HG630 to the MODEM interface on the splitter or to the telephone jack on the wall.

5-8

LAN interfaces, which are used to connect the HG630 to the Ethernet interface on the computer.

9

USB interface, which is used to connect a USB device, such as a portable storage device, or a printer.

10

Power interface, which is used to connect the HG630 to the power adapter.

11

Reset button, which is used to restore the factory settings of the HG630.

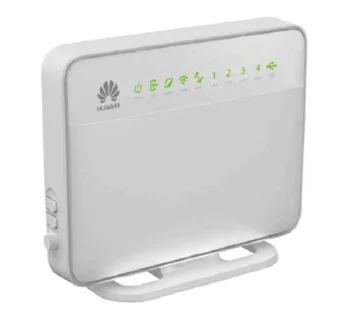

3.Product Appearance

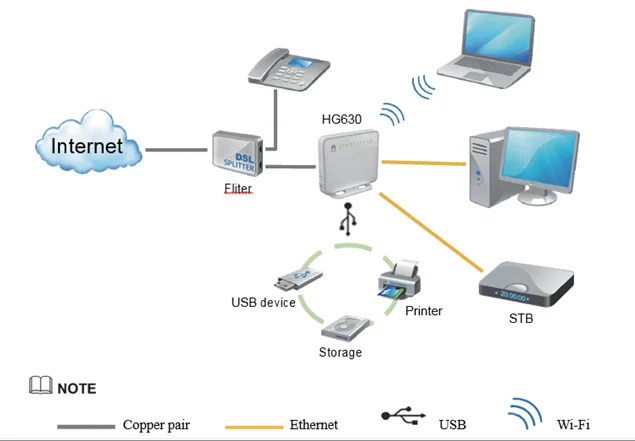

4.Network Application
Highlight Features



1 A high-bandwidth DSL and 3G uplink

HG630 integrated VDSL2 and ADSL2 + compatible, high-performance network processors, and supports 3G data cards Internet through the USB interface, can provide users with a richer business experience.



2 Wireless LAN function

HG630 support multiple wireless LAN protocols: 802.11b, 802.11g, 802.11n (2.4GHz ~ 2.4835GHz). Which, 802.11n supports MIMO 2 * 2 technology, the rate can reach 300Mbps.

HG630 support multiple wireless encryption mode, you can provide secure and reliable high-speed wireless local area network users.



3 WPS function

HG630 support WPS2.0 a key secure connection, you can simply and securely configure and manage wireless networks.



4 Routing

HG630 supports NAT, NAPT and RIP v1/v2. Gateways can get the address through PPP mode dial, you can get the address through DHCP.



5 IPv6 features

HG630-10 support IPv6, IPv4 & IPv6 dual stack support and DS-Lite modes. Other modes can be customized to support.



6 FLexible QoS policies

HG630 supports multiple traffic classification, support PQ and WFQ queue scheduling. You can ensure that the data transmitted through a variety of different business strategies, bringing higher quality video and audio for the end user to enjoy.



7 Standardized TR-069 management

HG630 fully compatible with DSL Forum’s TR-069 specification. HG630 provide comprehensive remote management and diagnostics capabilities, enabling zero configuration solution. With automatic upgrades and service provisioning process, you can easily achieve the user's customized service provisioning, greatly reducing operational and maintenance costs.



8 Easy secure configuration management capabilities

HG630 provides Web-based configuration management page, while the Web configuration page password protection to ensure the security of user information.

Technology



1 Interface Features

1.1 DSL Interface

Multiple DSL Standards

  • VDSL2
    • G.993.2 VDSL2
    • VDSL2 Profiles for 8a,8b, 8c, 8d, 12a, 17a
    • VDSL Vectoring
  • ADSL2+
    • G.992.5 (G.dmt.bitplus)
  • ADSL2
    • G.992.3 (G.dmt.bis) Annex L
  • ADSL
    • G.992.1 (G.dmt)
    • G.992.2 (G.lite)
    • G.994.1 (G.hs)
    • ANSI T1.413 Issue 2

Other Features

  • Multiple permanent virtual channels (PVCs)
  • Manual configuration of PVC parameters

1.2 WLAN Interface

  • Compliant with 802.11b, 802.11g and 802.11n (2.4 GHz ~ 2.4835GHz)
  • WPS 2.0 (PBC mode and PIN mode)
  • Supports DQPSK, DBPSK, CCK, OFDM, BPSK, QPSK, 16-QAM and 64-QAM wireless modulation method
  • Multiple SSIDs and SSID hiding
  • WPA1.0 and WPA2.0 security
  • 64/128digits WEP encryption
  • TKIP and AES encryption
  • WMM
  • Supports enable or disable the WLAN function by press WLAN button or config theweb-based utility
  • WLAN Rates:
    • 802.11b: Up to 11 Mbit/s
    • 802.11g: Up to 54 Mbit/s
    • 802.11n(with a 2×2 antenna used):Up to 300.0 Mbit/s

1.3 USB Interface

  • Functions as a USB Host 2.0 interface for USB storage devices or printers.
  • Accessing a portable storage device through FTP server
  • Supports DLNA

2 Security Features

  • Powerful wireless network security
  • IP/MAC filtering
  • URL filtering
  • ACL access control
  • Prevents DoS attacks such as LAND,SYN flooding, ICMP Smurf, Ping of Death, Ping Sweep, Teardrop, Unreachable, TCP/UDP PortScan and ICMPRedirection.

3 Routing & Bridged Features

  • Supports IPv6
    • IPv4 and IPv6 dual-stack
    • DS-Lite Tunnel
    • SLAAC
  • NAT and ALG expansion
  • DHCP Server/Client
  • DNS Relay/Client
  • IGMP proxy and IGMPsnooping
  • DMZ
  • UpnP
  • SNTP
  • Port mapping
  • RIP V1&V2
  • Bridging between the WAN port and the LAN port

4 QoS Features

  • Supports 802.1p and 802.1q
  • Agile QoS Strategy
  • Rich of stream classfication strategy

5 Network Management

  • Supports TR-069
  • Views system logs
  • Two levels of web access control
  • Prevents improper upgrades
  • Upgrade through TR-069
  • Remote and local web configuration and management
  • Backing up and restoring the cofiguration

6 Power Supply Specifications

  • Entire-device power supply: 12 V DC, 1 A
  • Entire-device power consumption: < 12 W

7 Physical Specifications

  • Dimensions (L × W × H): about 162 mm × 137 mm × 32 mm (Including the base plate)
  • Entire-device Weight: about 651 g (Including the box)

8 Environmental Specifications

  • Ambient temperature for operation: 0°C to 40°C (32°F to 104°F)
  • Relative humidity for operation: 5% to95%, non-condensing



Packaging & Shipping

Packaging:

1. All products will be packed in carton, so the product can get effective protection to avoid damage.

2. Packaging according to customer requirement

Shipping:

1. We shipping via DHL  / FedEx / TNT etc for samll orders. Yow can get your packages in about 3-5 days all over the world.

2. For big order, we will arrange Air cargo  for your shipment, so it will be much cheaper than DHL, UPS etc.

3. You can choose your own shipping agent, we will provide good cooperation for it.

After-Sales Service

1,We can provide detail documents and remote help for device installation and configuration.

2,Warranty: 1 year. ( After the quality guarantee period began to charge appropriate maintenance service fee.)
3,Our company promises goods enjoy full return due to quality problem since goods delivered within 7 days or 15 days , returned goods must keep original state and it’s accessories are complete.

4,Jenney Very Glad to Serve You!
