Quick Details

  • Products Status: Stock
  • Type: ADSL Modem
  • Application: home/office
  • Function: QoS
  • Certification: CE
  • Brand Name: Zyxel
  • Model Number: P-660N-T1A
  • Place of Origin: Shanghai, China (Mainland)
  • Classification: ADSL Modem
  • ADSL port:: 1 x RJ-11
  • Power input: 12 V DC 1 A
  • Button: Power switch button,Reset button
  • Item weight: 200 g (0.45 lb)
  • Item dimensions (WxDxH): 133 x 61 x 163 mm (5.23" x 2.4" x 6.42")
  • Temperature: 0°C to 40°C (32°F to 104°F)
  • Humidity: 20% to 85% RH (Non-condensing)
  • Safety: CE, CSA
  • EMI: CE, FCC

Packaging & Delivery

Packaging Details ADSL Modem Zyxel standard package
Delivery Time within 5-7 days after receive payment

In Stock ZyXEL P-660N-T1A Wireless ADSL WiFi Modem





Specifications

1.ZyXEL 150 Mbps 802.11n Wireless ADSL2+ Gateway P-660N-T1A
2.Frequency operation: 2.4 GHz
3.64/128 bits WEP data encryption

Product Overview



150 Mbps Ultra High Speed 802.11n ADSL2+ Wireless Gateway

 1.Overview

  • 802.11n AP function built-in (1x1)

  • Standard-based WPS for easy and secure WLAN establishment

  • Robust SPI firewall protection

  • Effective bandwidth management for triple-play applications

  • Remote provisioning and management through TR-069

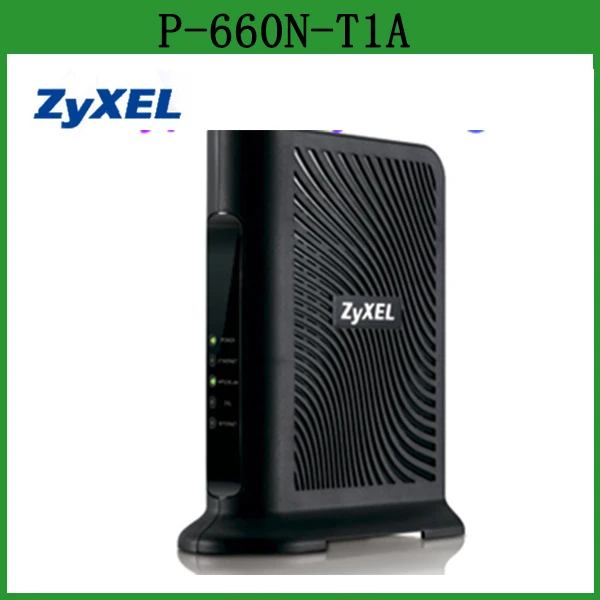

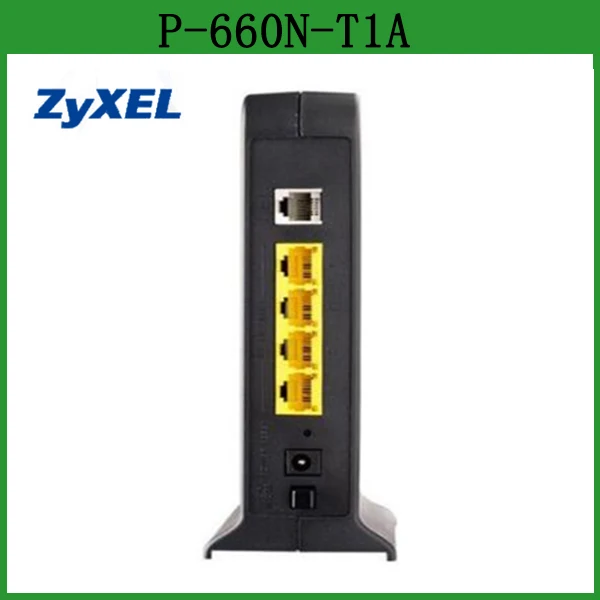

2.Appearance

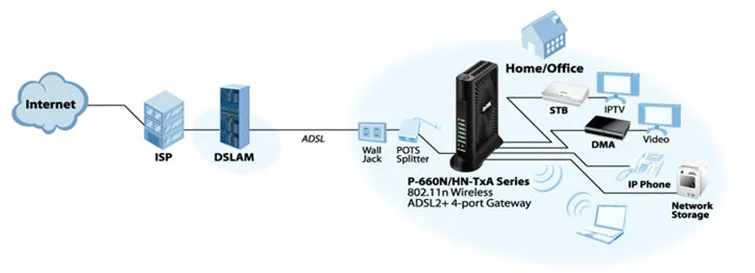

3.Application
Highlight Features



Benefits



802.11n technology for extreme performance and coverage

The P-660N-T1A featuring 802.11n Technology provides the ultimate solution for speed and coverage. With data rate up to 150 Mbps, the P-660N-T1A provides stable and reliable wireless connections for high-speed data and multimedia delivery. It eliminates dead zones and extends coverage by using IEEE 802.11n technology and is backward compatible with any IEEE 802.11b/g Wi-Fi certified device.



Wi-Fi Protection Setup (WPS)

Wi-Fi Protected Setup (WPS) is a standard for easy and secure establishment of wireless networks. With WPS, the device will automatically configure a wireless network with a network name (SSID), strong WPA data encryption and authentication. WPS makes the configuration of secure personal wireless networks as simple as pushing a button or entering a Personal Identification Number (PIN) code.



Robust SPI firewall security

The SPI Firewall works on the network layer by examining header and footer of a packet, and it also ensures the packet belongs to a valid session. Based on Stateful Packet Inspection (SPI), Denial of Service (DoS) and DDoS features, the P-660N-T1A provides the first-line defense against hackers, network intruders and other harmful threats.



Quality of Service (QoS) support

The P-660N-T1A comes equipped with essential ATM QoS features. Service providers can freely design their QoS policy and prioritize the mission-critical services such as IPTV and VoIP based on their service plans. This increases network efficiency and productivity to enable service providers to bring real multi-play into the daily life of residential users.



TR-069 remote management

With TR-069 standard management specifications, service providers are able to manage and configure client devices remotely without manual intervention from end users. This unique feature not only offers true “plug-and-play” experience but also reduces the complexity of deployment, and therefore saves operating and maintenance costs for service providers.



Technology



System Specifications



ADSL Compliance



  • ITU 992.1 (G.dmt )
  • ITU 992.3 ADSL2 (G.dmt.bis)
  • ITU 992.5 ADSL2+
  • Reach-Extended ADSL (RE ADSL)
  • Annex L/M support



WLAN



  • IEEE 802.11n compliance, backward compatible with 11b/g
  • Frequency operation: 2.4 GHz
  • 64/128 bits WEP data encryption
  • WPA/WPA2 (Wi-Fi Protected Access) security
  • Support IEEE 802.1x, external Radius server:
  • EAP-MD5, TLS, TTLS
  • Wireless scheduler
  • Wi-Fi Multimedia (WMM)
  • Wi-Fi Protected Setup (WPS)



Router



  • NAT (Maximum 2048 sessions)
  • SIP ALG pass-through
  • NAT port forwarding
  • PPPoE pass-through
  • Dynamic DNS
  • IP alias
  • DHCP server/client/relay
  • RIP I/RIP II support
  • IGMPv1 and v2 support
  • UPnP support
  • 802.1Q/1P



Firewall



  • Stateful Packet Inspection (SPI)
  • Denial of Service (DoS) prevention



Security



  • Multiple VPN (IPSec, PPTP) pass-through
  • Packet filtering
  • URL keyword blocking



Management



  • Embedded Web configuration
  • TR-069 HTTPS support
  • Logs and statistics
  • SNMP v1 and v2 with MIB II
  • Remote management control: Telnet, FTP, Web, SNMP, and DNS
  • CLI command via Telnet/console



Hardware Specifications



  • ADSL port: 1 x RJ-11
  • Power input (12 V DC 1 A)
  • Power switch button
  • Reset button
  • WPS and WLAN on/off hardware button (coexisting)
  • Single 3.5 dbi internal antennas
  • LED displays - Power - WLAN/WPS - DSL - Internet



Physical Specifications



  • Item weight: 200 g (0.45 lb)
  • Item dimensions (WxDxH):133 x 61 x 163 mm (5.23” x 2.4” x 6.42”)
  • Packing weight: 500 g (1.11 lb)
  • Packing dimensions (WxDxH): 240 x 178 x 73mm (9.45“ x 7.01” x 2.87”)



Environmental Specifications



Operating Environment



  • Temperature: 0°C to 40°C (32°F to 104°F)
  • Humidity: 20% to 85% RH (Non-condensing)



Storage Environment



  • Temperature: -20°C to 60°C (-4°F to 140°F)
  • Humidity: 20% to 90% RH (Non-condensing)



Certification



  • Safety: CE, CSA
  • EMI: CE, FCC
Company Information

Combasst Industry Development (Shanghai) Co,.Ltd, which provides main services in terms of broadband communications and information technology industries, is a high-tech enterprise integrating research and development, production, sales, and service. Our products mainly cover the optical signal transmission and access, signal transmission and access, photoelectric signal conversion and photoelectric signal.

The clients include major national telecom carriers, as well as radio and television, electricity, mining and other industry professional net users. We have already established long-term friendly and cooperative relations with them. In addition, our company has been actively expanding into foreign markets. The products are exported to many foreign clients in Europe, America, Southeast Asia, and the Middle East as well as Japan, Korea and other neighboring countries and regions.

We will constantly improve ourselves and feed back with our superior-quality products and meticulous care to all walks of partners, creating a win-win situation.


Basic Information
 Business Type:Manufacturer, Trading Company
 Main Products:Communication equipment (Transmission equipment,Router,Gateway equipment,WIFI equipment,ACCESS equipment,voip product)
 Number Of Employees:11 - 50 People

Combasst Industry Development (Shanghai) Co,.Ltd

Address: Room 110,No.389 JinWan Road, ShangHai , China



Telephone: +86-021-51758132
Fax:86-021-58714662



Attn: Jenney Yu

Trademanager:cn1511670985

Skype: Jenney yu




After-Sales Service

1,We can provide detail documents and remote help for device installation and configuration.

2,Warranty: 1 year. ( After the quality guarantee period began to charge appropriate maintenance service fee.)
3,Our company promises goods enjoy full return due to quality problem since goods delivered within 7 days or 15 days , returned goods must keep original state and it’s accessories are complete.

4,Jenney Very Glad to Serve You!
